Description

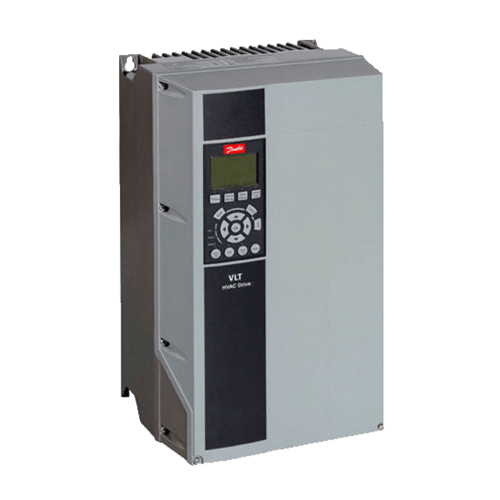

Danfoss FC 102
The VLT® HVAC Drive series is in a wide power range designed for all HVAC applications—an advanced drive built on HVAC dedication. The VLT® HVAC Drive is a full-featured, HVAC-dedicated drive with built-in intelligence. It has many functions developed to meet the diverse needs of the HVAC business in an increasingly energy-conscious world; effective HVAC systems are vital for maintaining comfort, reducing energy costs, and enhancing building automation.
The key features, benefits, and technical specifications make the FC 102 an excellent choice for HVAC applications. It perfectly matches pumps, fans and compressors in modern buildings fitted with increasingly sophisticated solutions.
Key Features
- Technical Specifications: The FC 102 drive has an A5 frame size, measures 242mm wide x 200mm deep x 420mm high, and weighs 14.20kg.
- Control and Monitoring: The VLT HVAC Drive has built-in intelligence and a wide range of pump, fan, and compressor functions.
- Reliability and Performance: The FC 102 drive ensures high performance and efficiency, addressing ever-increasing competition and efficiency demands.
- Energy Efficiency and Savings: The drive’s integrated pump, fan, and compressor functionality eliminates the need for external control and conversion equipment.
- Brake Chopper and Motor Protection: The FC 102 drive does not have a brake chopper but features a range of motor protection functions.
- Installation and Commissioning: It is easy to integrate into HVAC systems.
- Maintenance and Support: It features a range of maintenance and support functions, including condition-based monitoring and predictive maintenance.
- Compliance and Certifications: The FC 102 drive meets RFI Class A1/B and Class A1/B/C1 standards for electromagnetic compatibility.
Pros
- Variable Speed Drive
- Built-in energy meter for monitoring consumption.
- Compact design, saving space in control rooms.
- Integrated DC link chokes and EMC filters reduce grid pollution.
- It is equipped with HVAC-specific features for pumps, fans, and compressors.
- High efficiency with 5–15% energy savings via Automatic Energy Optimisation.
- Robust operation in harsh environments (IP66 rating available).
Cons
- Limited output frequency to 590 Hz may not meet all applications.
- Requires careful installation to avoid condensation issues.
- Performance may be compromised in extreme ambient conditions (above 55°C).
FAQs
What is the primary application of the Danfoss FC 102?
The Danfoss FC 102 is primarily designed for HVAC applications, specifically for controlling modern buildings' pumps, fans, and compressors to enhance energy efficiency and performance.
What are the key benefits of using the FC 102 drive?
The FC 102 drive offers several benefits, including higher reliability, lower total cost of ownership (TCO), improved energy efficiency, and built-in intelligence for optimised process control in HVAC systems.
What is the power range of the Danfoss FC 102?
The FC 102 operates within a voltage range of 380 - 480 VAC and has power ratings from 5.5 kW (7.5 HP) up to 1000 kW, making it suitable for various HVAC applications across different building sizes.
How does the FC 102 ensure energy efficiency?
The drive incorporates features such as Automatic Energy Optimisation, which can save 5-15% energy and integrates pump, fan, and compressor functionalities to eliminate the need for external control equipment.
Is the Danfoss FC 102 suitable for harsh environments?
Yes, the FC 102 has an IP55/Type 12 enclosure rating, making it suitable for harsh environments. It is designed to operate effectively in extreme climates and inaccessible machine rooms.
Reviews
Be The First To Review This Product!
Help other Controls Traders Pty Ltd users shop smarter by writing reviews for products you have purchased.
Danfoss FC102 55kW IP55 HVAC Variable Frequency Drive
FC102-P55K
$7,800.80
ex GST
In
Stock
Description
Danfoss FC 102
The VLT® HVAC Drive series is in a wide power range designed for all HVAC applications—an advanced drive built on HVAC dedication. The VLT® HVAC Drive is a full-featured, HVAC-dedicated drive with built-in intelligence. It has many functions developed to meet the diverse needs of the HVAC business in an increasingly energy-conscious world; effective HVAC systems are vital for maintaining comfort, reducing energy costs, and enhancing building automation.
The key features, benefits, and technical specifications make the FC 102 an excellent choice for HVAC applications. It perfectly matches pumps, fans and compressors in modern buildings fitted with increasingly sophisticated solutions.
Key Features
- Technical Specifications: The FC 102 drive has an A5 frame size, measures 242mm wide x 200mm deep x 420mm high, and weighs 14.20kg.
- Control and Monitoring: The VLT HVAC Drive has built-in intelligence and a wide range of pump, fan, and compressor functions.
- Reliability and Performance: The FC 102 drive ensures high performance and efficiency, addressing ever-increasing competition and efficiency demands.
- Energy Efficiency and Savings: The drive’s integrated pump, fan, and compressor functionality eliminates the need for external control and conversion equipment.
- Brake Chopper and Motor Protection: The FC 102 drive does not have a brake chopper but features a range of motor protection functions.
- Installation and Commissioning: It is easy to integrate into HVAC systems.
- Maintenance and Support: It features a range of maintenance and support functions, including condition-based monitoring and predictive maintenance.
- Compliance and Certifications: The FC 102 drive meets RFI Class A1/B and Class A1/B/C1 standards for electromagnetic compatibility.
Pros
- Variable Speed Drive
- Built-in energy meter for monitoring consumption.
- Compact design, saving space in control rooms.
- Integrated DC link chokes and EMC filters reduce grid pollution.
- It is equipped with HVAC-specific features for pumps, fans, and compressors.
- High efficiency with 5–15% energy savings via Automatic Energy Optimisation.
- Robust operation in harsh environments (IP66 rating available).
Cons
- Limited output frequency to 590 Hz may not meet all applications.
- Requires careful installation to avoid condensation issues.
- Performance may be compromised in extreme ambient conditions (above 55°C).
FAQs
What is the primary application of the Danfoss FC 102?
The Danfoss FC 102 is primarily designed for HVAC applications, specifically for controlling modern buildings' pumps, fans, and compressors to enhance energy efficiency and performance.
What are the key benefits of using the FC 102 drive?
The FC 102 drive offers several benefits, including higher reliability, lower total cost of ownership (TCO), improved energy efficiency, and built-in intelligence for optimised process control in HVAC systems.
What is the power range of the Danfoss FC 102?
The FC 102 operates within a voltage range of 380 - 480 VAC and has power ratings from 5.5 kW (7.5 HP) up to 1000 kW, making it suitable for various HVAC applications across different building sizes.
How does the FC 102 ensure energy efficiency?
The drive incorporates features such as Automatic Energy Optimisation, which can save 5-15% energy and integrates pump, fan, and compressor functionalities to eliminate the need for external control equipment.
Is the Danfoss FC 102 suitable for harsh environments?
Yes, the FC 102 has an IP55/Type 12 enclosure rating, making it suitable for harsh environments. It is designed to operate effectively in extreme climates and inaccessible machine rooms.
Reviews
Be The First To Review This Product!
Help other Controls Traders Pty Ltd users shop smarter by writing reviews for products you have purchased.
